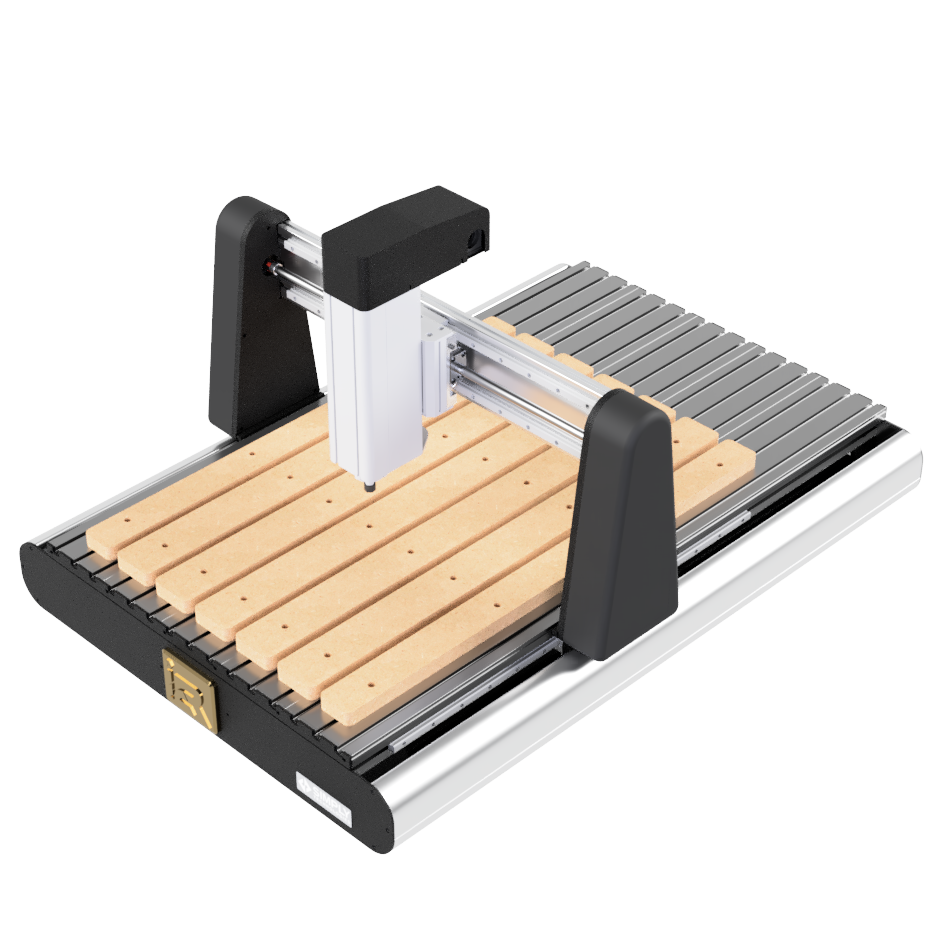

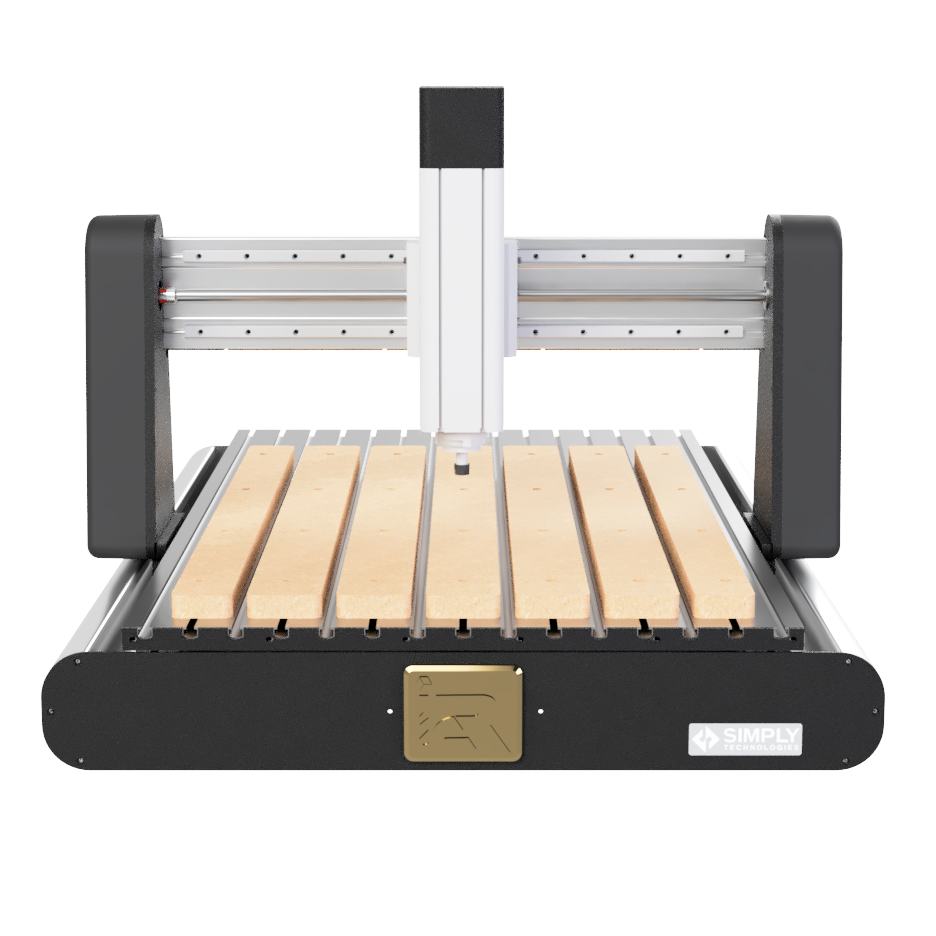

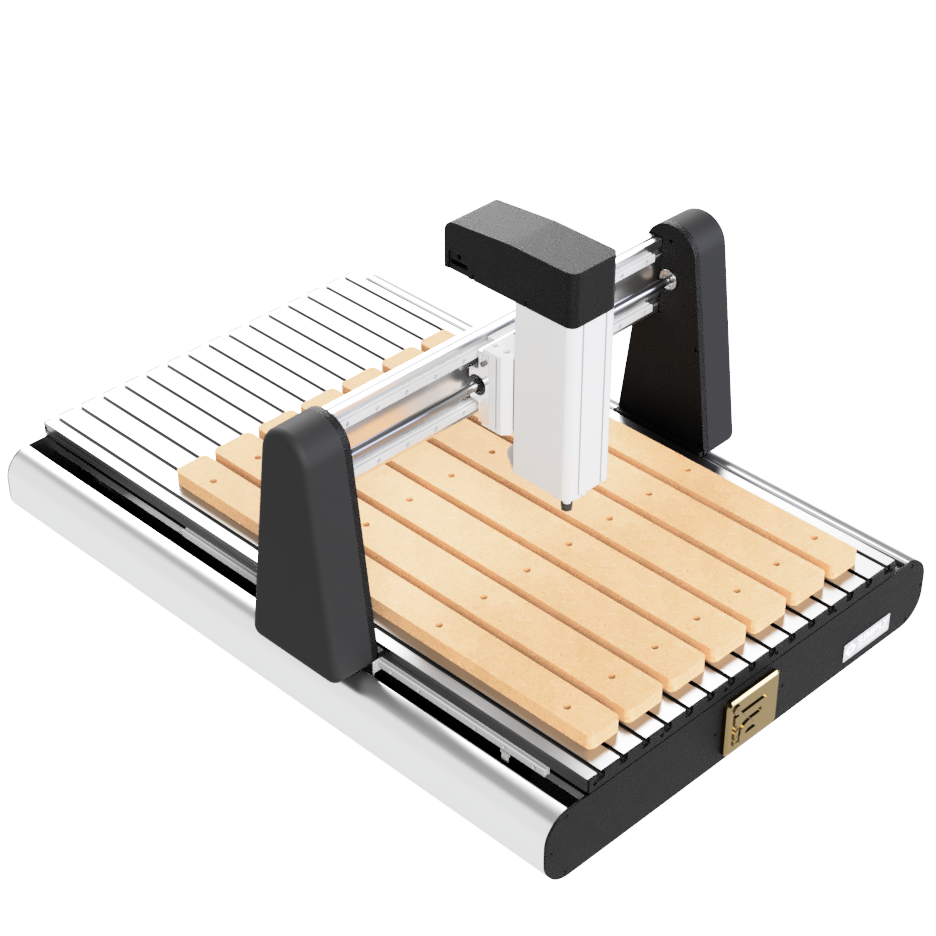

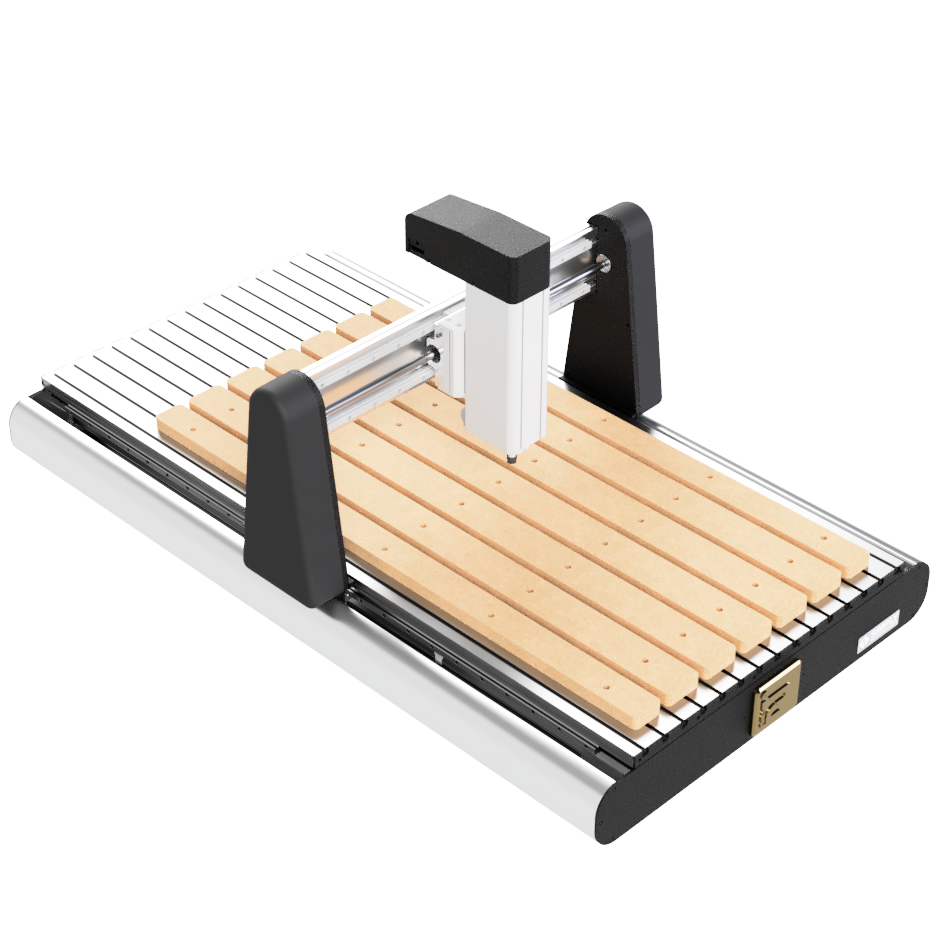

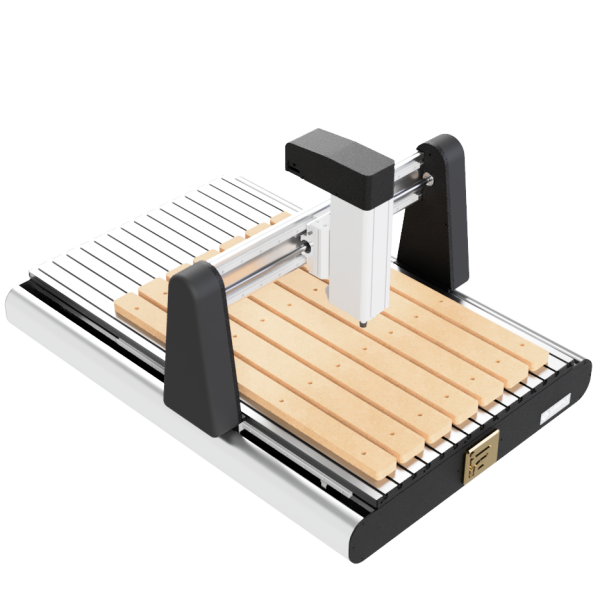

Simply 6 (24″ x 36″)

SKU: SIMPLY6

From: $5,799.00CAD

The new SIMPLY Series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

To Pre-Order, use this code at check out: 50%DOWN

We will invoice you for the balance at the time of shipping.

Need a formal quotation before purchasing?
Request A Quotation



Simply Stand 6

Simply - CNC Router Tool Box

Simply - Pendant Protector - B11/B18

Simply Dust Shoe

J Tech - Photonics 2.8W Laser Kit for Simply Series

Simply Laser Safety Scanner

Overarm Dust System - Simply Series

Simply - Hold Down Clamps (pair)

Simply - Vacuum Hold-Down Kit (5 pods)

Simply - LED Lamp Kit (ICONIC 4, 6, 8)

Simply Series Starter Bit Set (3pc) by Amana Tool

Simply Series Carving Bit Set (2pc) by Amana Tool

Simply - Inlay Bit Set (3pc) by Amana Tool

Simply Series Sign Making Bit Set (2pc) by Amana Tool

Simply - Plastic Bit Set (2pc) by Amana Tool

Simply - Aluminum Bit Set (2pc) by Amana Tool

Simply Series Bit Set (9pc) w/ Spektra Coating by Amana Tool

Vectric - Vcarve Pro Software (Digital Media Version)

Vectric - Photo Vcarve Software (Digital Media Version)

Vectric - Aspire Software (Digital Media Version)

Simply - CNC Maintenance Kit

AHC109 - Simply Lateral Clamp Kit

Simply SureGrip Spoilboards

Simply Laser Safety Scanner

Simply Series Safety Enclosure

*Additional freight charges may apply for any orders shipped to remote areas.

Description

We are now offering the SIMPLY Series, a limited-edition CNC lineup designed exclusively for our long-time customers. These machines offer the reliability and precision you’ve come to expect from us, at an exclusive discounted price for this special release. The SIMPLY Series is available in three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

Your new Limited Edition Simply Series will be custom built for you once we receive your order. Reserve yours today with a 50% deposit. Estimated delivery is 4 months (don’t worry, it will be worth the wait!)

X axis travel 23.81″ (605mm)
Y axis travel Simply-4 = 24.01″ (610mm)
Simply-6 = 35.82″ (910mm)
Simply-8 = 47.63″ (1210mm)
Z axis travel 3.937″ (100mm)
Table work area Simply-4 = 28.4″ x 37″
Simply-6 = 28.4″ x 49″
Simply-8 = 28.4″ x 61″
Electro Spindle 800W (1HP)
Includes Collets 1/4″ & 1/8″
Spindle speed 0-24,000 RPM
Rapid feed rate 150 IPM (3.81 MPM)
Precision Linear Guideway X/Y/Z
Precision Ball Screw X/Y/Z
Ball Screw Diameter 16mm
Resolution +/- .00589″ (0.15mm)
Power requirements 115V, 50~60Hz, 13A, 1-Phase (Canada 230V, 7A)
Working Table High rigidity Aluminum Extrusion
Gantry bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum billet machined
Max Gantry Clearance 5 1/2″ (139.0mm)
Gantry Clearance Above Spoil Brds 4 1/2″ (114.3mm)
Machine Base All Welded Steel Frame
Machine Dimensions Simply-4 = 38″L x 35″W x 28″H
Simply-6 = 50″L x 35″W x 28″H
Simply-8 = 62″L x 35″W x 28″H
Shipping Dimensions Simply-4 = 40″ x 38″ x 21″
Simply-6 = 55″ x 38″ x 21″
Simply-8 = 65″ x 38″ x 21″
Machine Weight Simply-4 = 176 lbs
Simply-6 = 209 lbs
Simply-8 = 242 lbs
Tool Touch Off Included
Controller RichAuto B11 DSP
CNC motion control system
USB port for easy file transfer.
(NO PC REQUIRED)
